HEAVY-DUTY. LIGHTWEIGHT.
The Jazzy® Carbon HD weighs 32.2 lb without the battery and boasts a 400-lb weight capacity without compromising on quality or performance. It quickly folds and is easy to pick up thanks to a durable, lightweight carbon fiber frame.
- Unit weighs 32.2 lb without the battery
- 400-lb weight capacity
- Durable carbon fiber frame

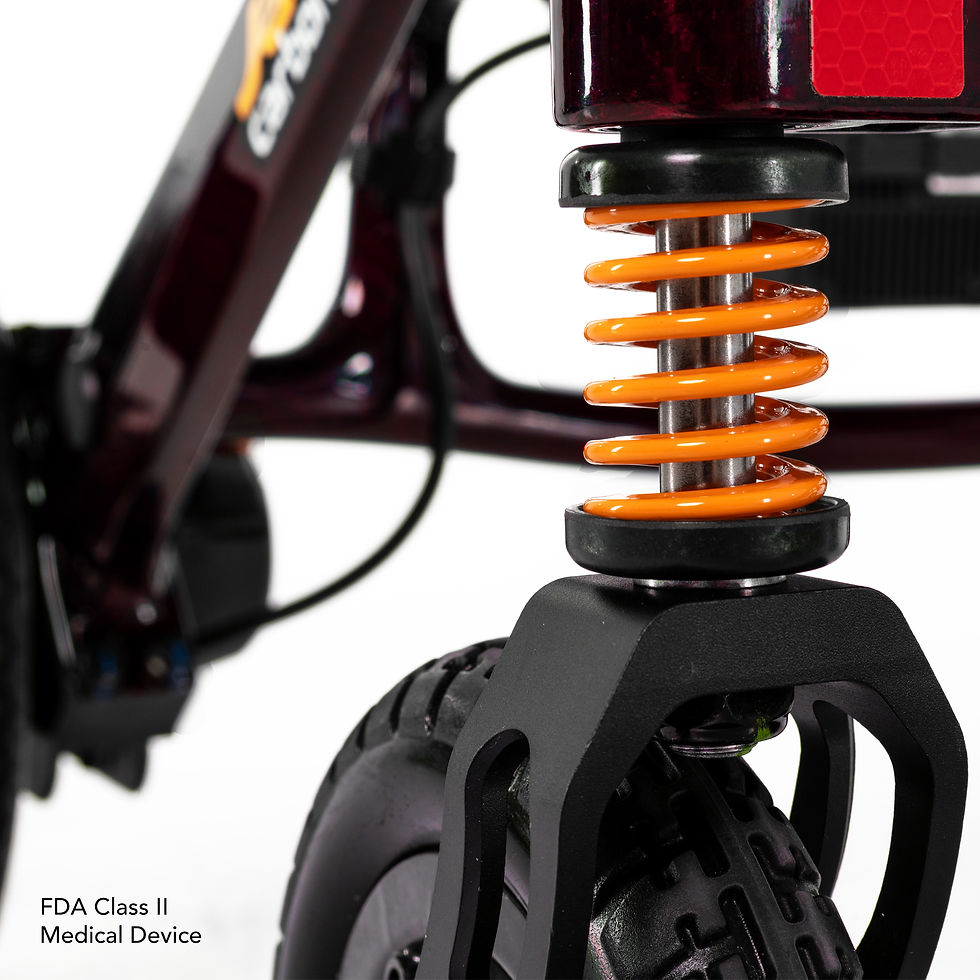

- Front and rear suspension
- Top speed of up to 3.7 mph
- Folded dimensions: 31.3" L x 26.4" W x 13" H

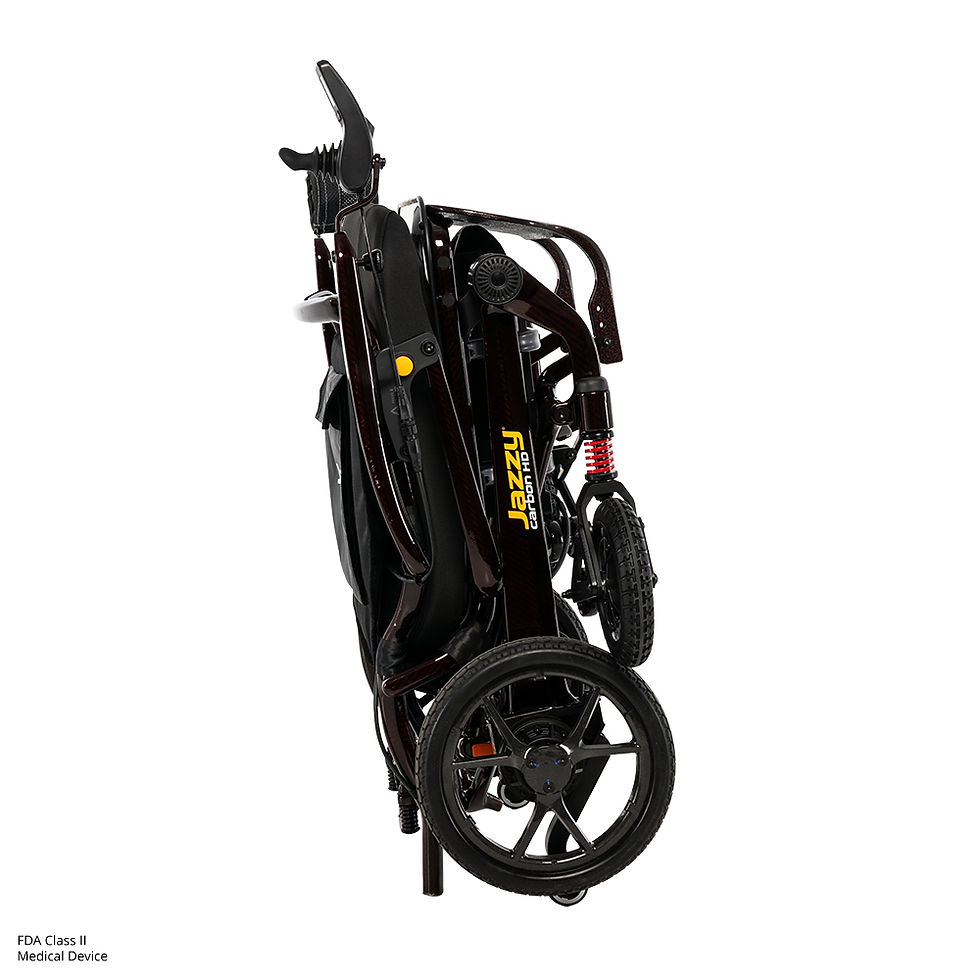

- Easy fold design that locks into folded position
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25" W x 5.9" D
- 20 Ah lithium battery** charges quickly (Standard)
- Storage pocket on back of seat
- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion and adjustable lap belt (standard)
Jazzy Carbon HD
Part Number Jazzy® Carbon HD Weight Capacity 400 lb (182 kg) Maximum Speed* Up to 6 kph (3.7 mph) Ground Clearance** 1" at motor Turning Radius** 36.4" Overall Length** 36.81" Overall Width 26.4" Suspension Full front and rear suspension Tires Front: 6.5" Rear: 10.6" Range Per Charge* Up to 12.4 mi (20 km) per charge Product Weight** 32.2 lb (14.6 kg) without batteries Standard Seating Dimensions: 20" x 20" seat Seat sling with removable cushion Folded Dimensions 31.3" L x 26.4" W x 13" H Motor Output 24V 250W Brushless Brakes Regenerative and electromechanical Battery Requirements Type: Lithium battery box Size: 20 Ah Battery Weight 7.5 lb (3.4 kg) Battery Charger 2 Amp
